Connecting Everything with Wized

This guide walks you through connecting your WordPress frontend with the Xano backend using Wized. We'll cover Apps, Requests, Variables, Elements, and Workflows.

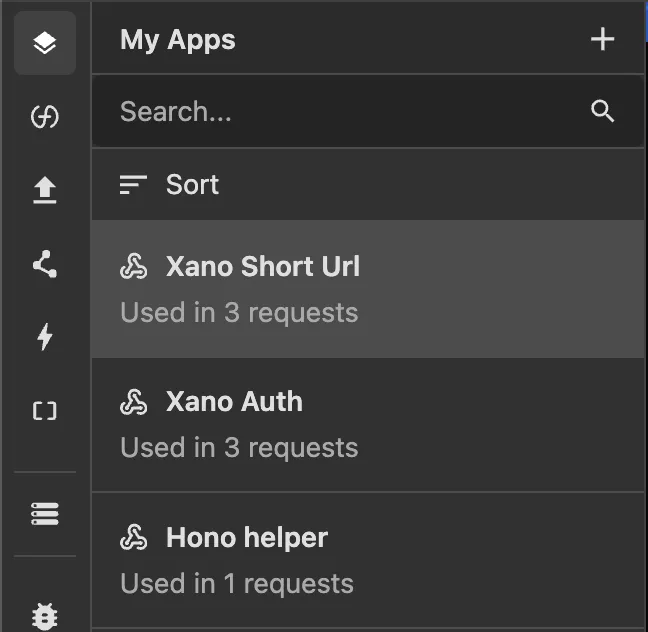

Step 1: Create Apps

Apps in Wized represent your API connections. For this URL shortener, we need two Xano apps:

App Name	Base URL	Purpose
Xano Auth	Xano base url for auth endpoints	User authentication
Xano Short Url	Xano base url for short url endpoints	URL shortening operations
Hono helper	We use this to fetch the title of the Website before saving to Xano	Fetch title

Learn More

Check out the Apps documentation to learn how to create and configure Apps in Wized.

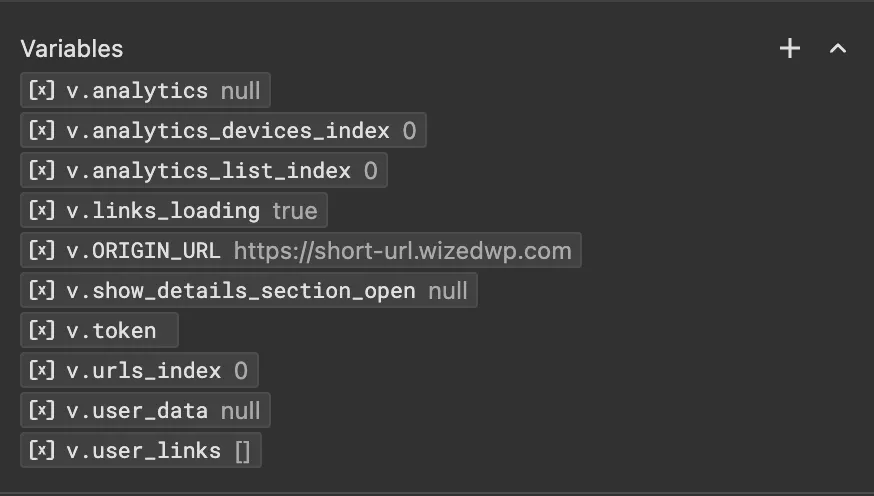

Step 2: Set Up Variables

Variables store data that persists across your application. Create the following variables:

User management variables:

Variable Name	Storage Type	Initial Value	Purpose
token	Session Storage	''	Stores the authentication JWT token
user_data	Session Storage	null	Stores the authenticated user's data

Links management variables:

Variable Name	Storage Type	Initial Value	Purpose
user_links	Local Storage	[]	Stores the user's shortened URLs
links_loading	None	true	Stores the loading state of links

Index variables

Variable Name	Storage Type	Initial Value	Purpose
urls_index	None	0	Helper to render the list of urls, and access a specific item
analytics_countries_index	None	0	Helper to render country analytics
analytics_devices_index	None	0	Helper to render device analytics

Constant variables

Variable Name	Storage Type	Initial Value	Purpose
ORIGIN_URL	None	https://short-url.wizedwp.com	Save the Origin of the url shortener app

UI State management

Variable Name	Storage Type	Initial Value	Purpose
show_details_section_open	None	false	state of the analytics details section, opened or closed

Learn More

Check out the Variables documentation to learn how to create and configure Variables in Wized.

Step 3: Create Reusable Helper functions

Reusable helper functions in Wized allow you to define custom JavaScript logic that can be called from any expression throughout your project.

Example: For our URL shortener, we'll create a function called get_random_string that generates random alphanumeric strings for short codes.

Function Name	Parameters	Purpose
get_random_string	n	Generates a random string of length n

// get_random_string function
return Math.random().toString(36).slice(2, p.n);

This function is called when creating new short URLs: Wized.functions.get_random_string({ n: 10 }) generates a unique 10-character code for each shortened link.

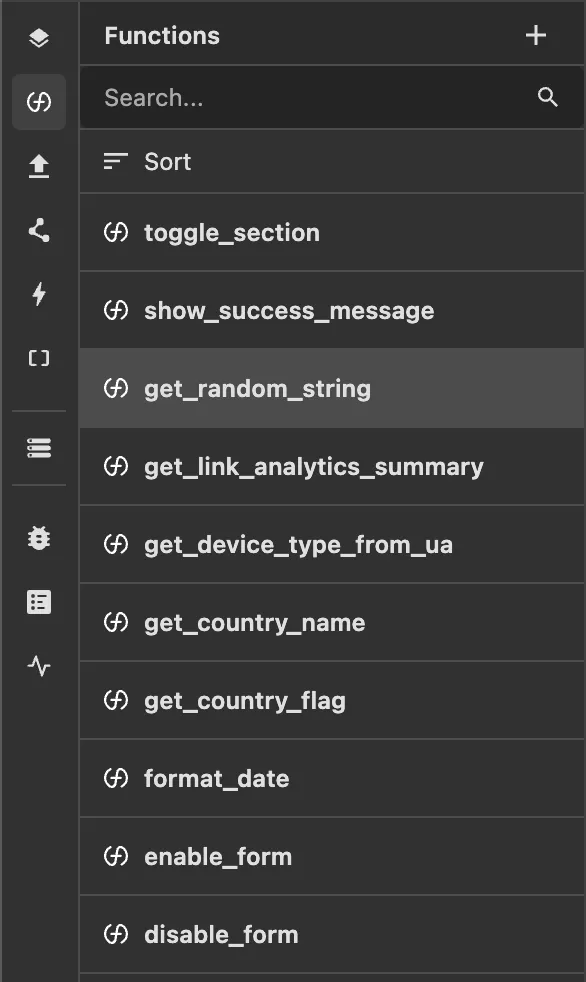

Below are all functions used in this demo:

Function Name	Purpose
toggle_section	Shows or hides a UI section (e.g., analytics details panel)
show_success_message	Displays a success notification to the user
get_random_string	Generates a random alphanumeric string of specified length
get_link_analytics_summary	Returns aggregated analytics data for a shortened link
get_device_type_from_ua	Parses the user agent string to determine device type
get_country_name	Converts a country code to its full country name
get_country_flag	Returns the flag emoji for a given country code
format_date	Formats a date value into a human-readable string
enable_form	Enables form inputs (e.g., after successful submission)
disable_form	Disables form inputs (e.g., while a request is in progress)

Learn More

Check out the Functions documentation to learn how to create and use reusable functions in Wized.

Step 4: Create Wized Requests

Requests in Wized are how you communicate with external APIs. Each request defines an endpoint, method, headers, and body parameters. They can be executed from workflows or triggered by element interactions, and their responses can be stored in variables for use throughout your application.

For our URL shortener app we need these requests

Authentication Requests

Sign Up Request

Creates a new user account.

Property	Value
App	Xano Auth
Props	email, password
Method	POST
Endpoint	/auth/signup
Body	email, password

Values for body:

email = 'return p.email'
password = 'return p.password'

Sign In Request

Authenticates an existing user and returns a token.

Property	Value
App	Xano Auth
Props	email, password
Method	POST
Endpoint	/auth/login
Body	email, password

Values for body:

email = 'return p.email'
password = 'return p.password'

Load User Data Request

Fetches the current user's data using the stored token.

Property	Value
App	Xano Auth
Method	GET
Endpoint	/auth/me
Authorization	Bearer Token from v.token

URL Management Requests

Create Short URL Request

Creates a new shortened URL.

Property	Value
App	Xano Short Url
Props	url, title
Method	POST
Endpoint	/short_link
Authorization	Bearer Token from v.token
Body	url, title, short_code

Values for the body:

email = 'return p.email'
password = 'return p.password'
short_code = 'return Wized.functions.get_random_string({ n:10 })'

Load User URLs Request

Fetches all shortened URLs for the authenticated user.

Property	Value
App	Xano Short Url
Method	GET
Endpoint	/short_link
Authorization	Bearer Token from v.token

Delete URL Request

Deletes a shortened URL by ID.

Property	Value
App	Xano Short Url
Method	DELETE
Endpoint	/short_link/${p.id}
Authorization	Bearer Token from v.token
Props	id (URL ID to delete)

Step 5: Create Wized Workflows

Workflows orchestrate multiple actions in sequence. Here are the key workflows:

Sign In Workflow

Handles user login and redirects to the dashboard.

Name: sign_in_workflow

Props: email and password

1. Execute Request: sign_in (with form email & password)
2. Condition: Check if request succeeded
   ├─ Success:
   │   ├─ Set Variable: token = response.authToken
   │   ├─ Run Workflow: load_user_workflow
   │   └─ Navigate: /dashboard/
   └─ Error:
       └─ Show error message (alert)

Sign Up Workflow

Handles user registration and redirects to the dashboard.

Name: sign_up_workflow

Props: email and password

1. Execute Request: sign_up (with form email & password)
2. Condition: Check if request succeeded
   ├─ Success:
   │   ├─ Set Variable: token = response.authToken
   │   ├─ Run Workflow: load_user_workflow
   │   └─ Navigate: /dashboard/
   └─ Error:
       └─ Show error message (alert)

Load User Workflow

Fetches and validates the current user's authentication status.

Name: load_user_workflow

1. Execute Request: load_user
2. Condition: Check if request succeeded
   ├─ Success:
   │   └─ Set Variable: user_data = response.data
   └─ Error:
       └─ Run Function: Alert session expired, clear token & user_data

Log Out Workflow

Clears user session and redirects to sign-in page.

Name: log_out_workflow

1. Set Variable: token = null
2. Set Variable: user_data = null
3. Set Variable: user_links = []
4. Navigate: /sign-in/

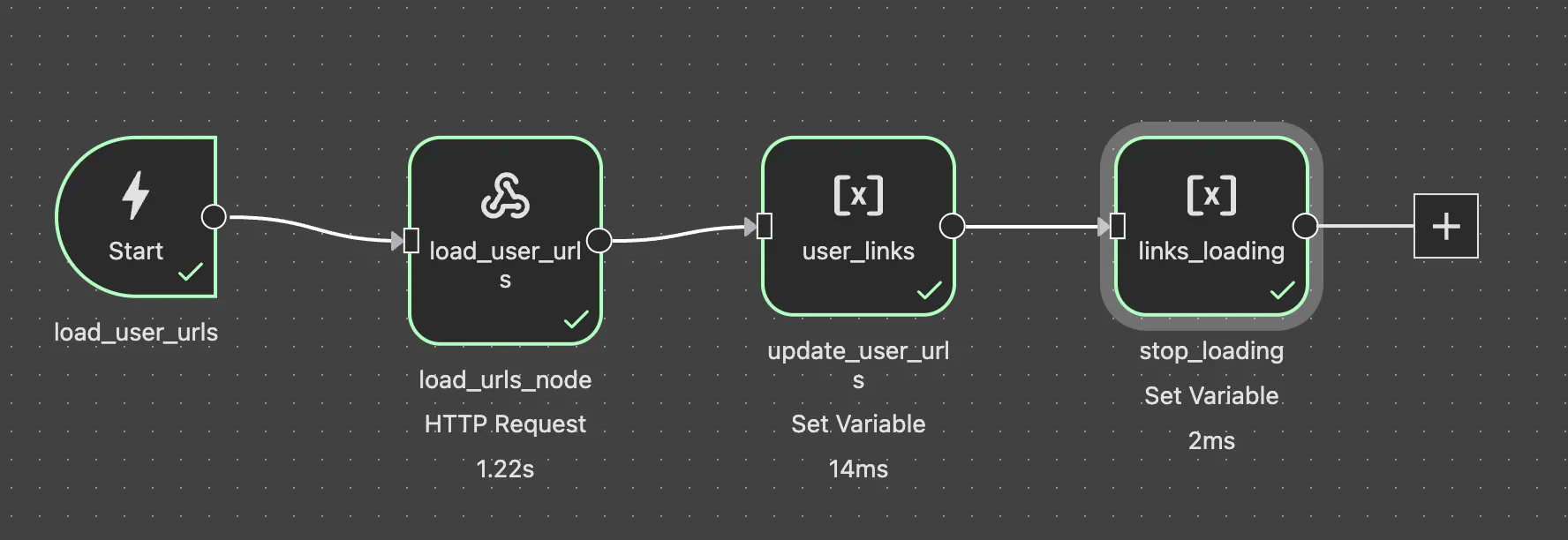

Load User URLs Workflow

Fetches the authenticated user's shortened URLs.

Name: load_user_urls

1. Execute Request: load_user_urls
2. Set Variable: user_links = response.data
3. Set Variable: links_loading = false

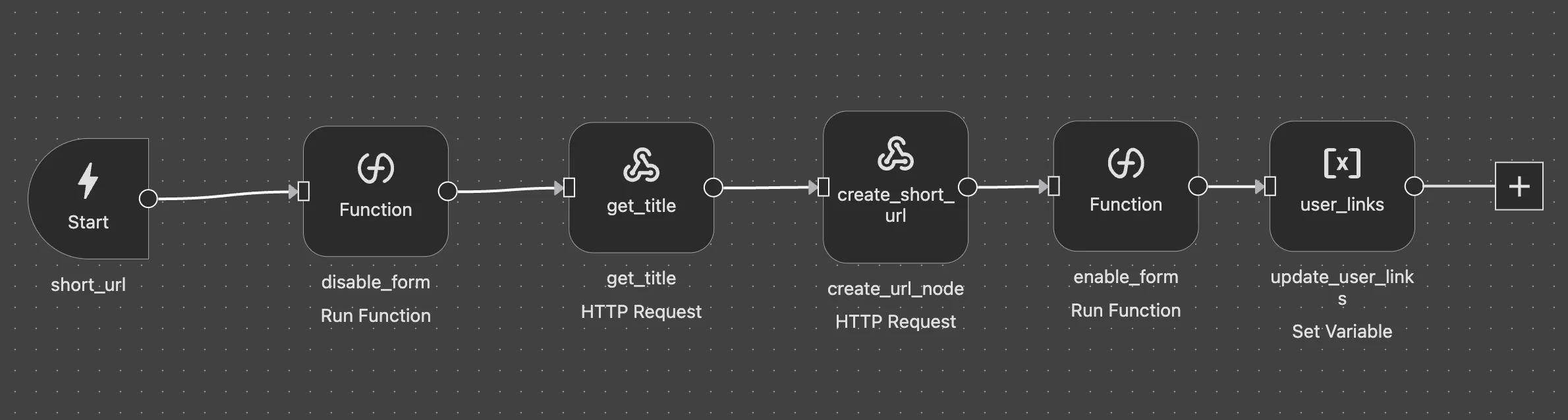

Short URL Workflow

Creates a new shortened URL with automatic title fetching.

Name: short_url

Props: original_url

1. Run Function: disable_form
2. Execute Request: get_title (fetch page title from URL)
3. Execute Request: create_short_url (with original_url & fetched title)
4. Run Function: enable_form
5. Set Variable: user_links = [new_url, ...existing_urls]

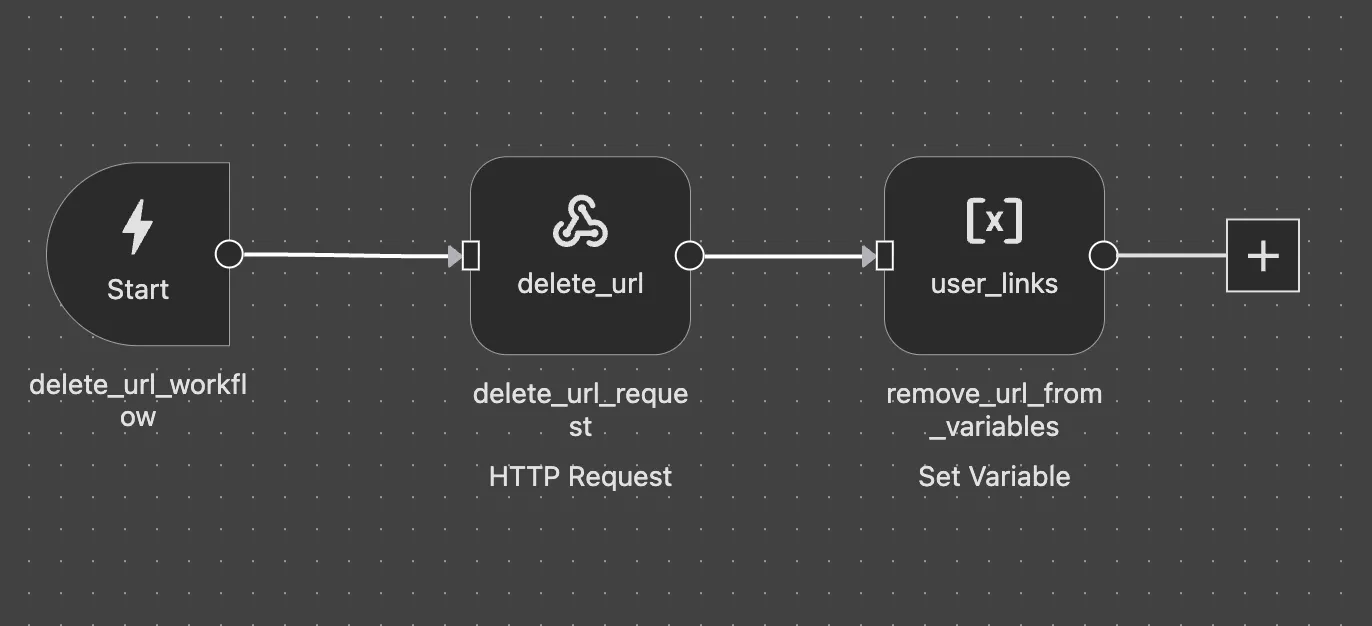

Delete URL Workflow

Removes a URL and updates the list.

Name: delete_url_workflow

Props: id

1. Execute Request: delete_url (with URL id)
2. Set Variable: user_links = filtered array (remove deleted item)

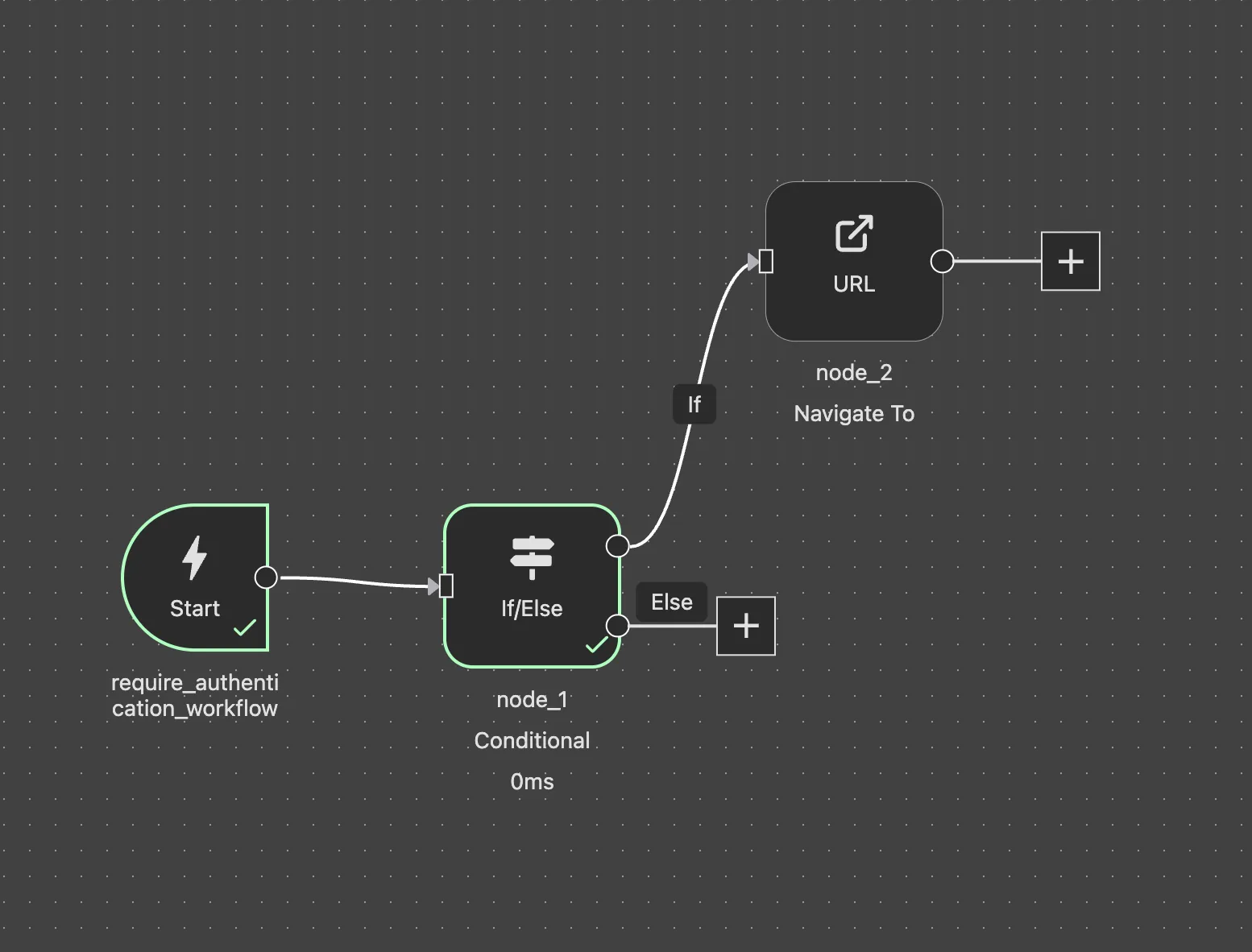

Require Authentication Workflow

Redirects unauthenticated users to sign-in page.

Name: require_authentication_workflow

1. Condition: Check if token is missing
   ├─ No token:
   │   └─ Navigate: /sign-in/
   └─ Has token:
       └─ Continue (no action)

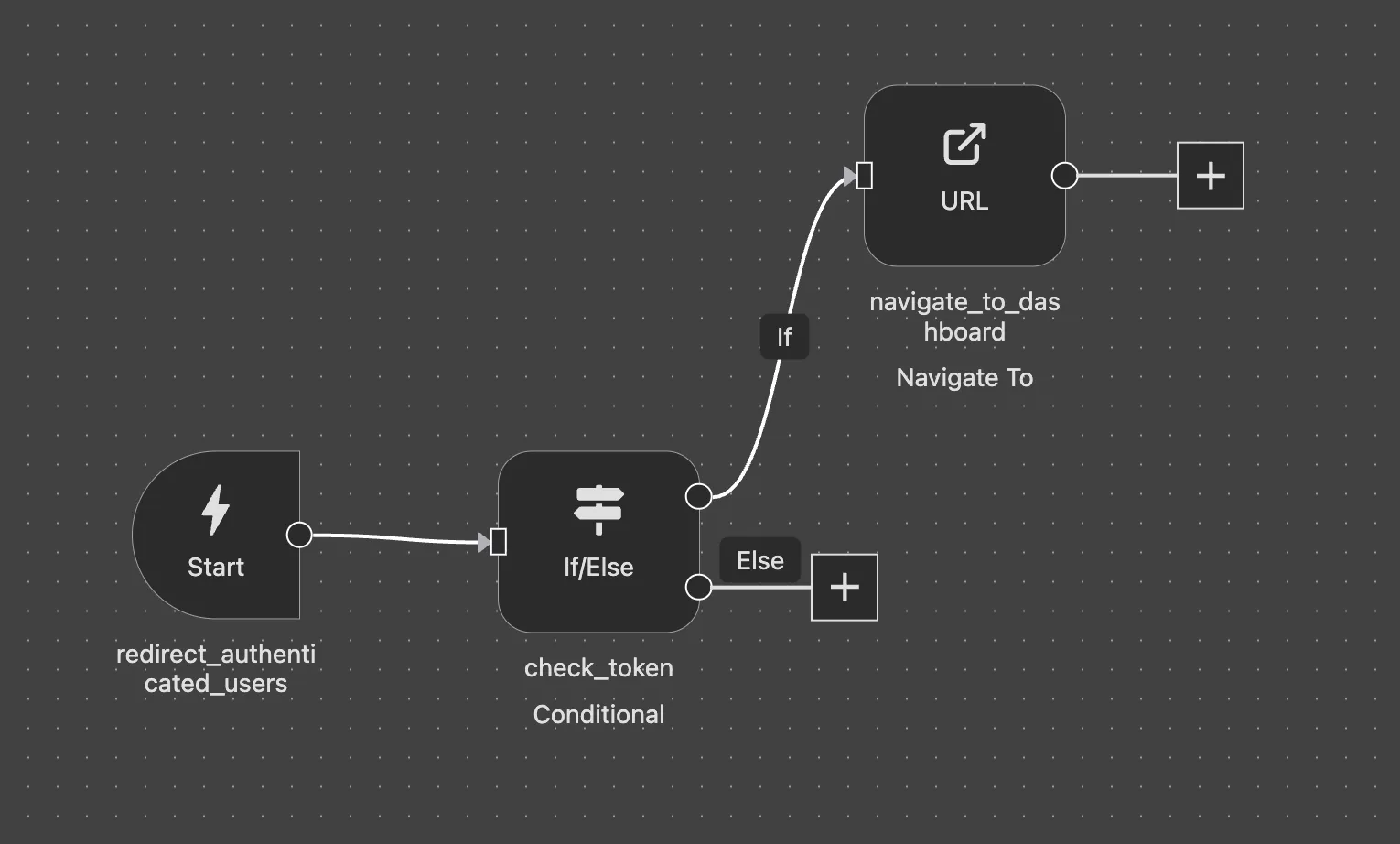

Redirect Authenticated Users Workflow

Redirects already authenticated users away from auth pages.

Name: redirect_authenticated_users

1. Condition: Check if token exists
   ├─ Has token:
   │   └─ Navigate: /dashboard/
   └─ No token:
       └─ Continue (no action)

Learn More

Check out the Workflows documentation to learn how to create and configure Workflows in Wized.

Step 4: Configure Elements

Elements connect your WordPress HTML to Wized's logic. Add the wized attribute to elements in WordPress, then configure them in Wized.

For each element, you can configure visibility conditions, set dynamic values, define events.

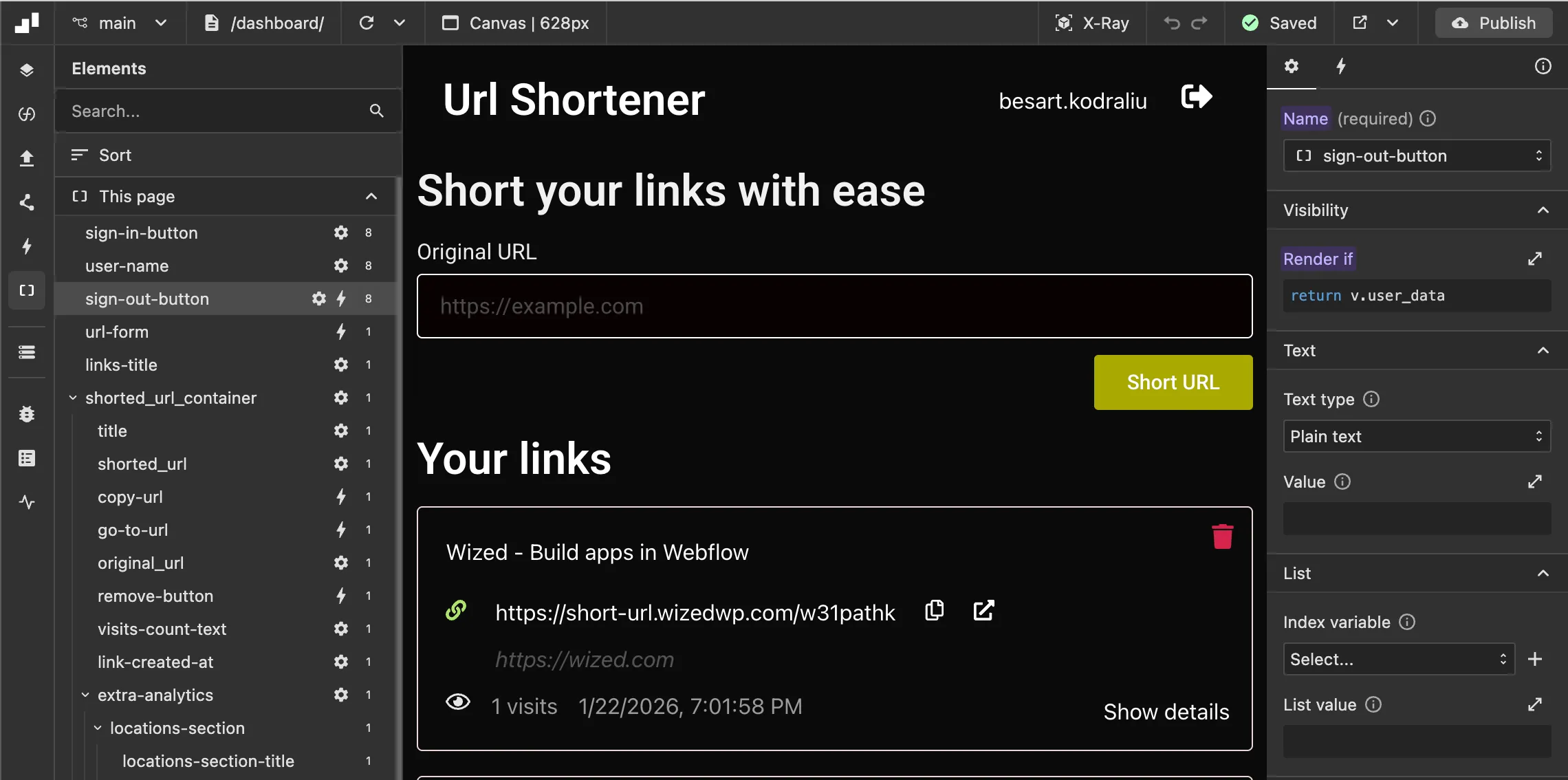

Sign Out button example:

For the sign out button, we set visibility to return v.user_data, so it only shows when the user is loaded.

Visibility examples

Element Name	Type	Configuration
sign-in-button	Button	Visibility: return !v.user_data (hide when logged in)
sign-out-button	Button	Visibility: return v.user_data (show when logged in)

Text value example

Element Name	Type	Configuration
user-name	Text	Text: return v.user_data.name || v.user_data.email.split('@')[0]

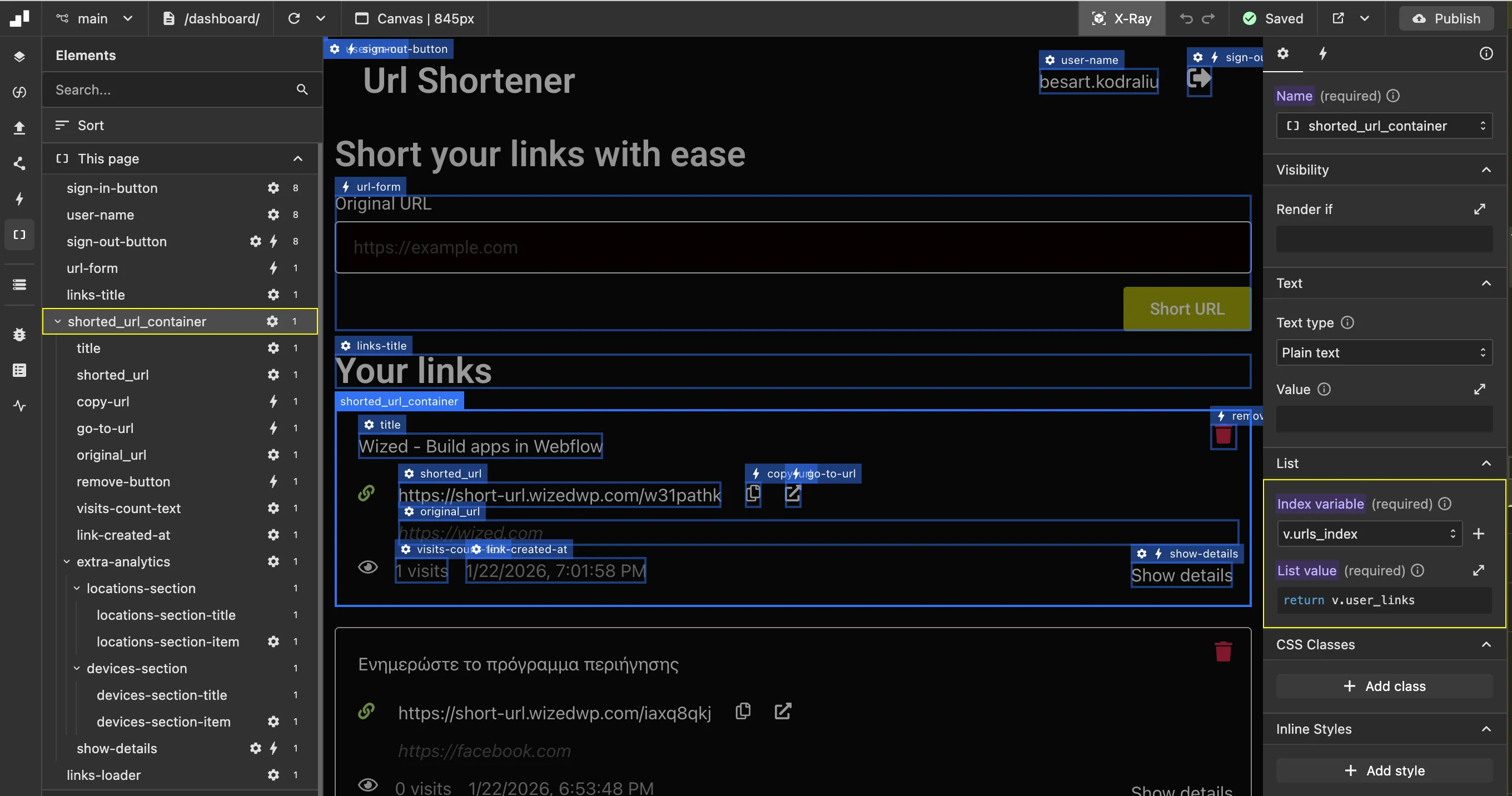

Rendering a List of Items

To render a list of items, select the container element that wraps each item. In this example, we render link items from the user_links variable.

Configuration:

1. Index Variable: Create a variable (e.g., urls_index) to access individual items within the list
2. List Value: Set the render list expression to return v.user_links

Elements inside the container can then reference the current item using the index variable, such as v.user_links[v.urls_index].

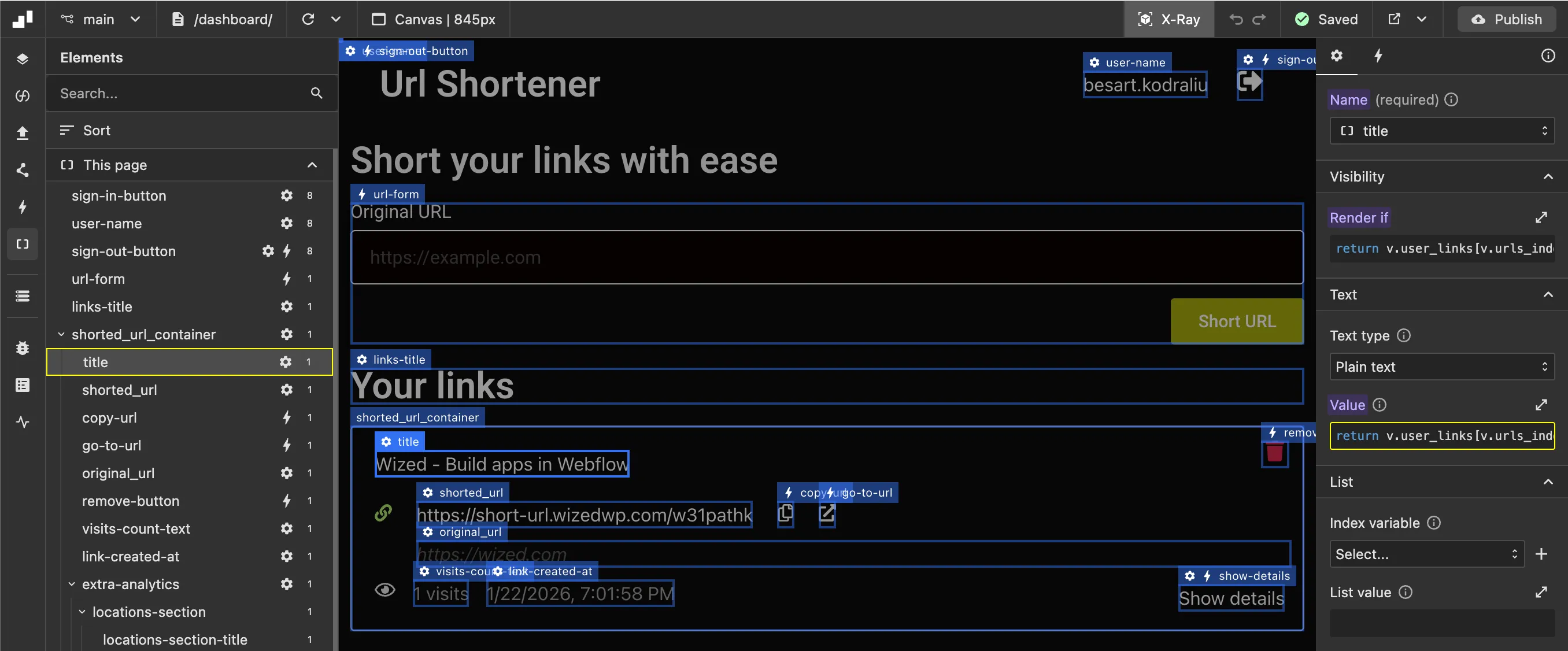

Now we render items, for example for the title, we setup text value return v.user_links[v.urls_index].title

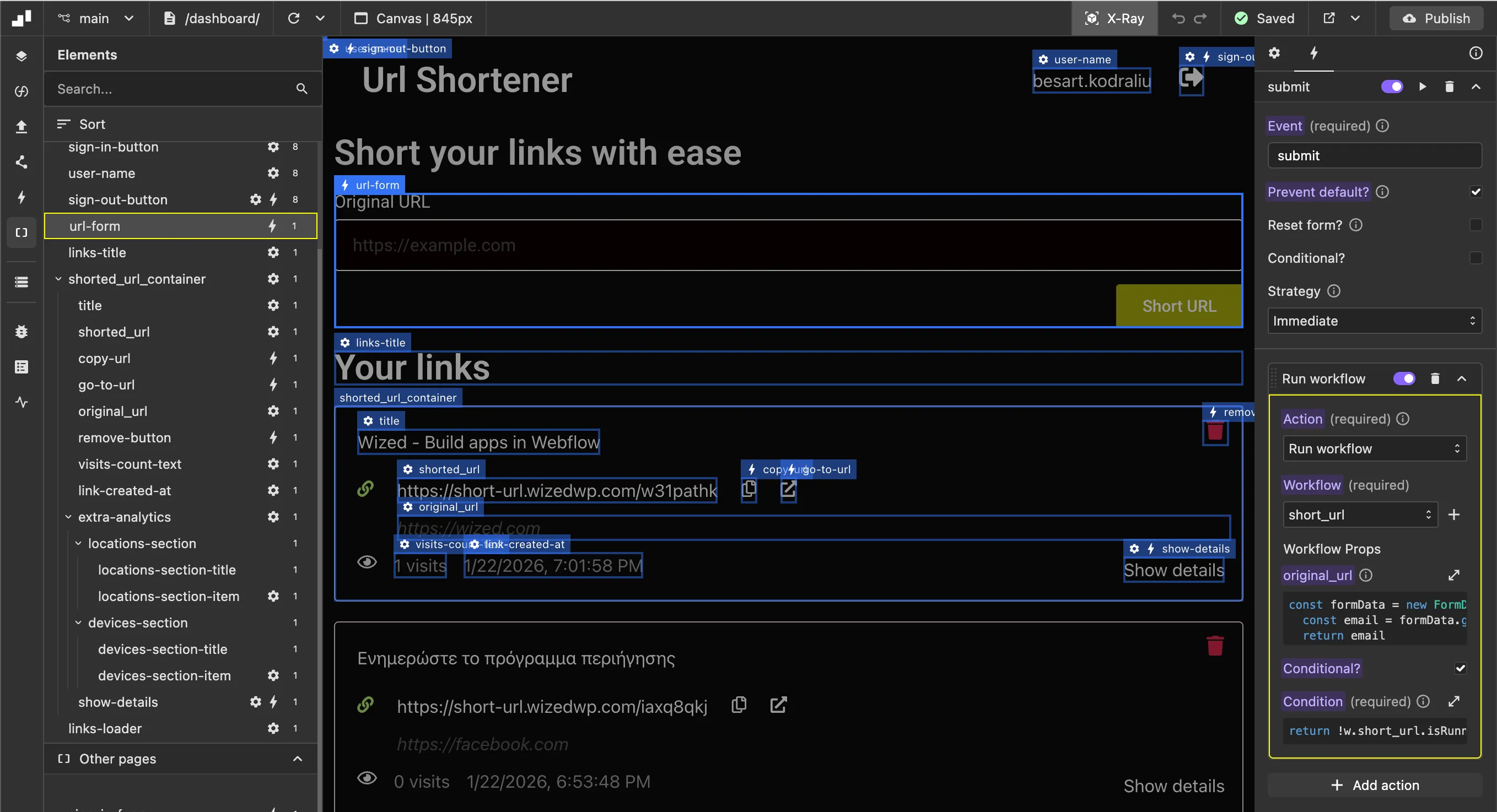

Form submit and events

Element Name	Type	Configuration
url-form	Form	Triggers short_url workflow
sign-in-form	Form	Triggers sign_in_workflow

Complete Elements Reference

Below is a comprehensive table of all elements configured in the URL shortener demo:

Authentication Elements

Element Name	Configuration Type	Configuration
sign-in-button	Visibility	return !v.user_data
sign-out-button	Visibility	return v.user_data
sign-out-button	Event (Click)	Triggers log_out_workflow
sing-in-form	Event (Submit)	Triggers sign_in_workflow with email and password from form fields
sing-up-form	Event (Submit)	Triggers sign_up_workflow with email and password from form fields
user-name	Visibility	return v.user_data
user-name	Text	return v.user_data.name || v.user_data.email.split('@')[0]

URL List Container

Element Name	Configuration Type	Configuration
shorted_url_container	List	Value: return v.user_links, Index Variable: urls_index
links-title	Visibility	return v.user_links.length>0
links-loader	Visibility	return v.links_loading && v.user_links.length===0

URL Item Elements

Element Name	Configuration Type	Configuration
title	Visibility	return v.user_links[v.urls_index].title
title	Text	return v.user_links[v.urls_index].title
shorted_url	Text	return `${v.ORIGIN_URL}/${v.user_links[v.urls_index].short_code}`
original_url	Text	return v.user_links[v.urls_index].original_url
link-created-at	Text	return Wized.functions.format_date({time:\${v.user_links[v.urls_index].created_at}`})`

URL Actions

Element Name	Configuration Type	Configuration
url-form	Event (Submit)	Triggers short_url workflow (condition: return !w.short_url.isRunning)
copy-url	Event (Click)	Copies short URL to clipboard using navigator.clipboard.writeText()
go-to-url	Event (Click)	Opens short URL in new tab: window.open(\${v.ORIGIN_URL}/...`, '_blank')`
remove-button	Event (Click)	Triggers delete_url_workflow with id from v.user_links[v.urls_index].id

Analytics Elements

Element Name	Configuration Type	Configuration
visits-count-text	Text	return `${v.user_links[v.urls_index].analytics.length} visits`
show-details	Text	Returns 'Hide details' or 'Show details' based on v.show_details_section_open
show-details	Event (Click)	Toggles section visibility and loads analytics summary via toggle_section function
extra-analytics	Visibility	return v.user_links[v.urls_index].id === v.show_details_section_open
locations-section-item	List	Value: return v.analytics.top_countries.slice(0,5), Index: analytics_list_index
locations-section-item	Text	Returns formatted country with flag and count using get_country_name function
devices-section-item	List	Value: return v.analytics.devices, Index: analytics_devices_index
devices-section-item	Text	return `${v.analytics_devices_index + 1}. ${item.name} (${item.count})`

Step 6: Set Up Global Events

Global events trigger workflows on specific pages when certain conditions are met.

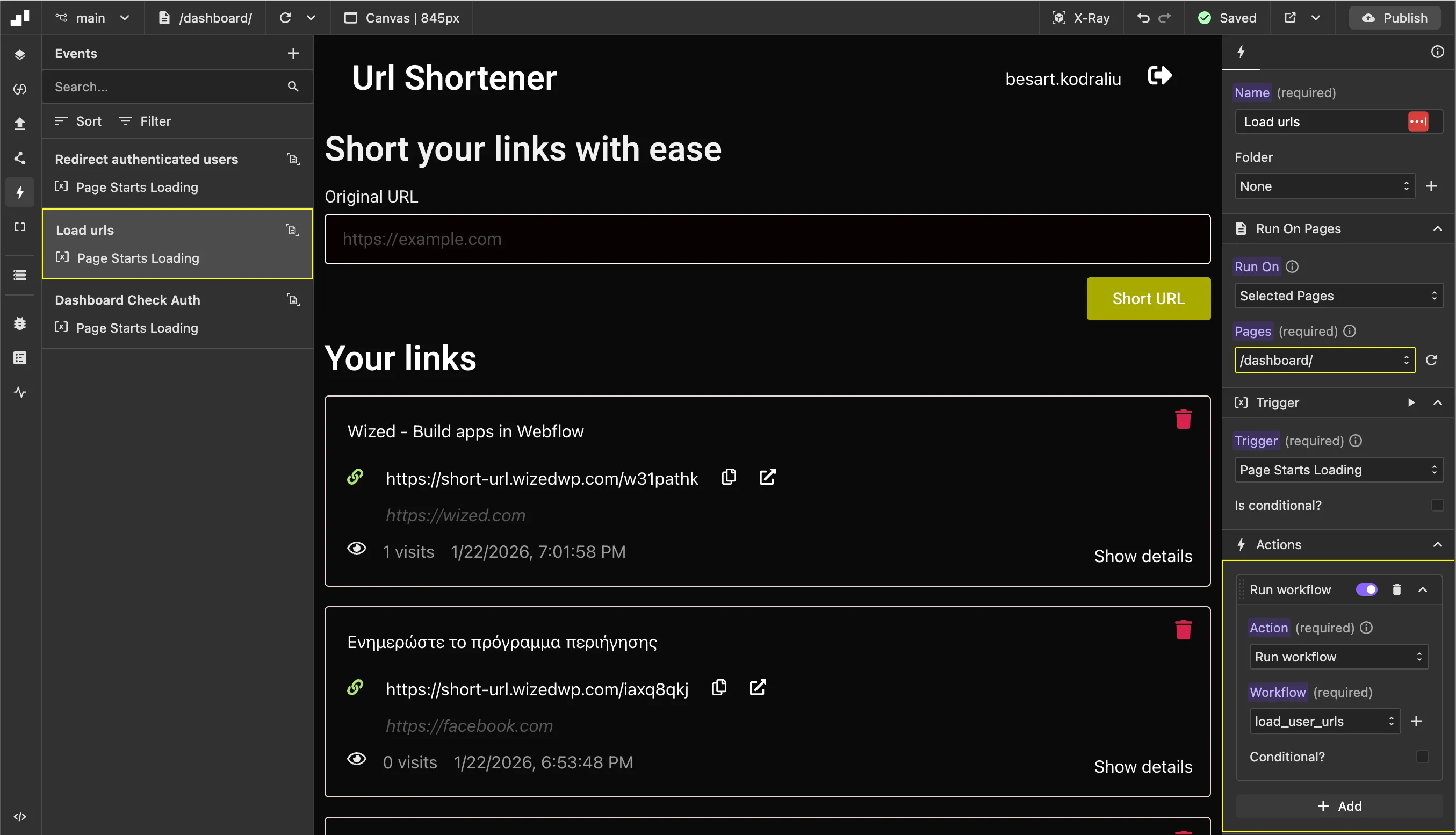

Dashboard Page Load

When the dashboard page loads, we trigger the load_user_urls workflow to fetch and display the user's shortened URLs.

Other events on this project:

Event Name	Type	Configuration
Redirect authenticated users	Page starts loading (Auth Pages)	Triggers redirect_authenticated_users workflow
Dashboard Check auth	Page starts loading (Dashboard)	Triggers require_authentication_workflow

Summary

By following these steps, you've connected:

1. WordPress → Provides the visual structure with Wized attributes
2. Wized → Manages all dynamic behavior, data binding, and API calls
3. Xano → Handles authentication, database storage, and business logic
4. Redirect Service → Handles short URL redirects and click tracking

The result is a fully functional URL shortener where users can sign up, log in, create shortened URLs, view their links, and delete them, all without writing complex code in WordPress.
